Axial Fan Square Frame FR-300-BS EC

Logo REVENTON
303,00 € HT
363,60 € TTC
252,50 € HT 303,00 € TTC €
Disponible

Free delivery in metropolitan France (10 to 15 working days).

Airflow

2615 m³/h

Electrical power

150 W

  • framed, for a well-suited wall mounting
  • powder coated galvanized protective grille
  • modern design
  • Pay securely on our store
  • Ask our experts for a free quote

Legal warranty

One-year legal warranty for professionals and two-year legal warranty for individuals (excluding consumables and wear parts)

Product description

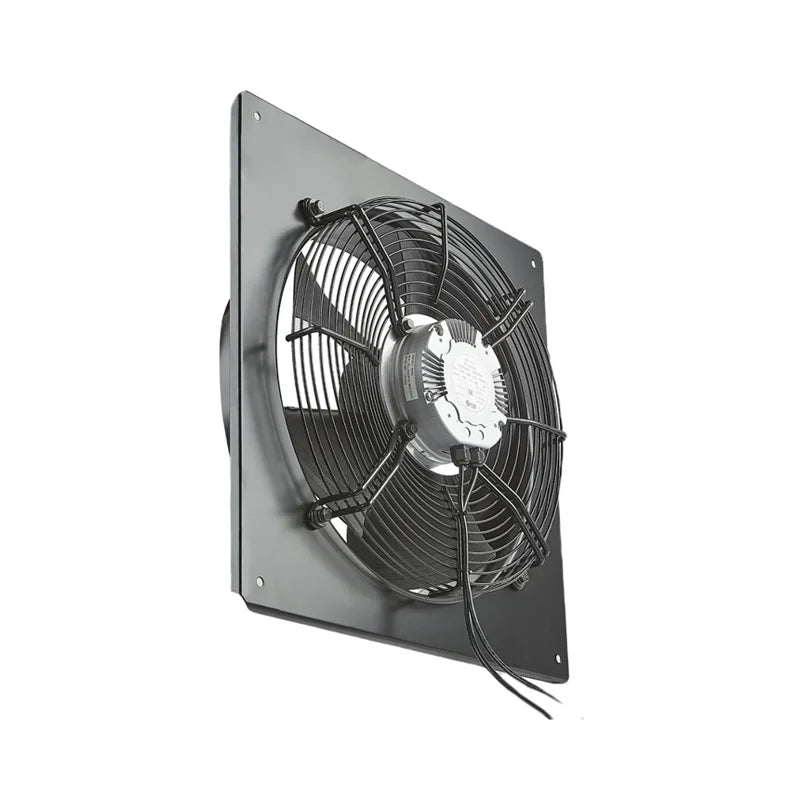

Axial fan with square frame FR-300-BS EC

FR-BS EC series axial fans are designed for wall mounting. They are equipped with a square frame with screw holes. The units are made of powder-coated steel with a fine finish. Their blades are profiled to ensure high suction efficiency.

Applications

Fan intended for: warehouses, sports centres, commercial pavilions, garages, greenhouses.

Parameters

Maximum airflow: 1410 to 21480 m³/h
Weight: 5.3 to 44.5 kg
Motor rated current: 1.0 to 4.8 A
Casing: powder-coated steel

Further information

Designed for wall mounting.
Unit available in single-phase or three-phase version.
Metal blades.

Control

The unit is controlled by dedicated automation to control the fan and its operation.

Advantages

  • Equipped with a frame for well-suited wall mounting
  • Galvanised powder-coated protective grille
  • Modern design
  • Energy-efficient

Technical Specifications

Airflow

2615 m³/h

Food

230 V / 50 Hz

Intensity

1.3 A

Electrical power

150 W

Engine speed

2020 rpm

Sound level

70 dB(A)

Weight

7.7 kg
