Axial Fan Square Frame FR-300-BS

Logo REVENTON
178,00 € HT
213,60 € TTC
148,33 € HT 178,00 € TTC €
Disponible

Free delivery in metropolitan France (10 to 15 working days).

Airflow

1550 m³/h

Electrical power

75 W

  • framed, for a well-suited wall mounting
  • powder coated galvanized protective grille
  • modern design
  • Pay securely on our store
  • Ask our experts for a free quote

Legal warranty

One-year legal warranty for professionals and two-year legal warranty for individuals (excluding consumables and wear parts)

Product description

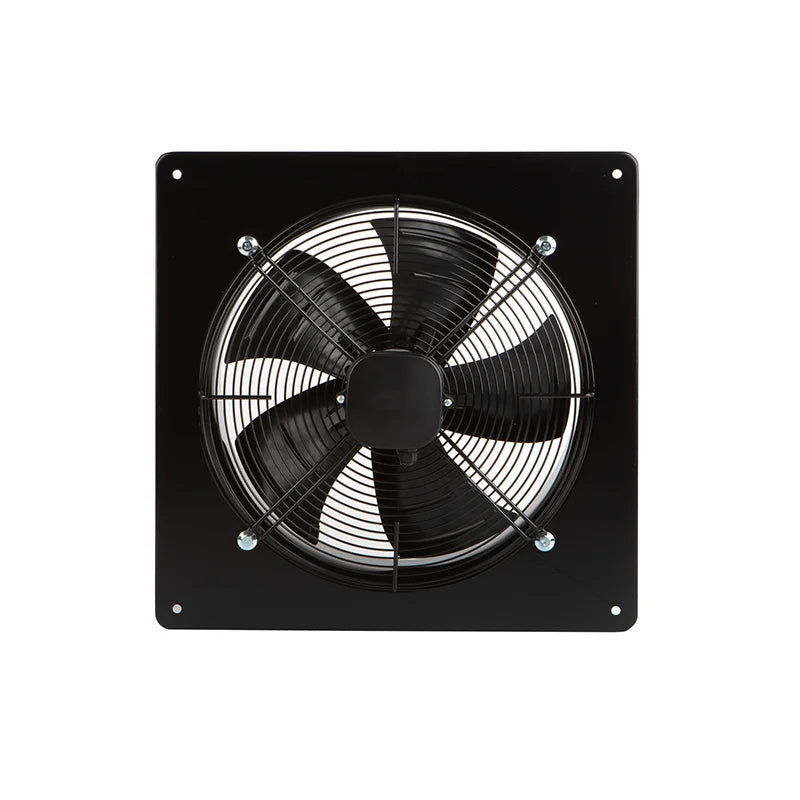

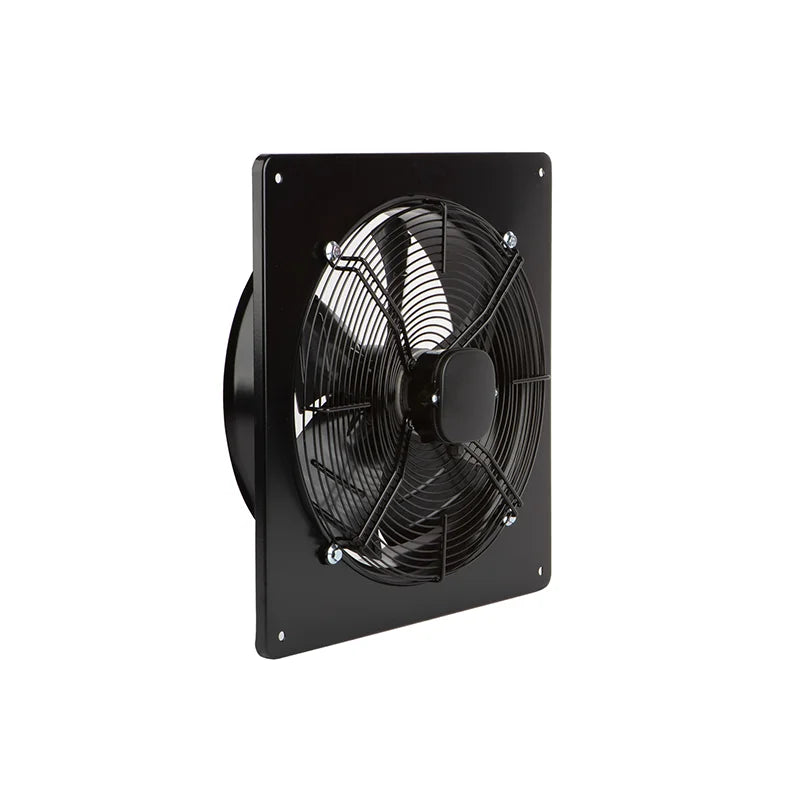

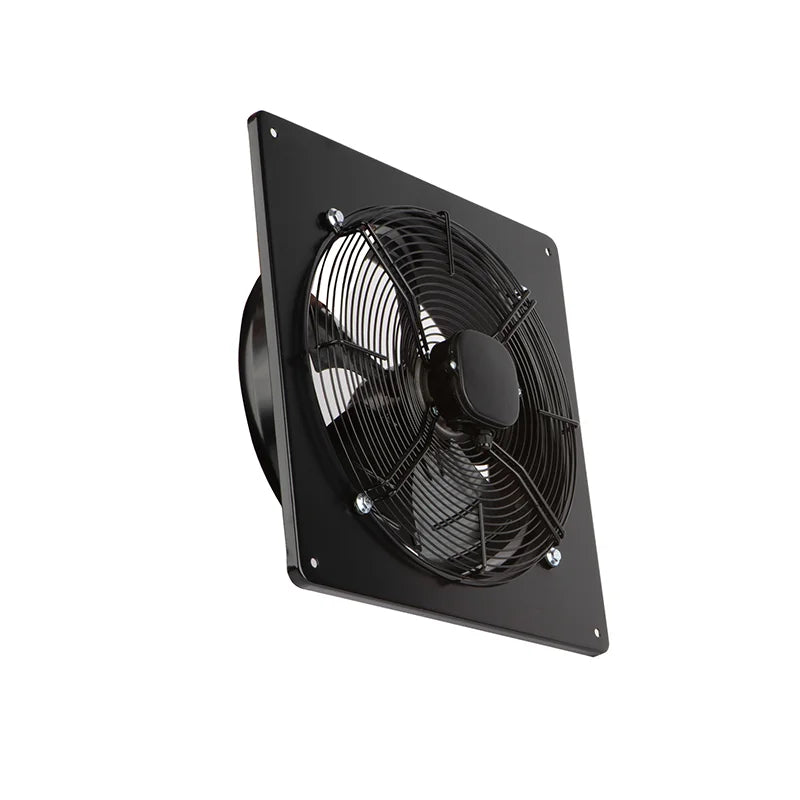

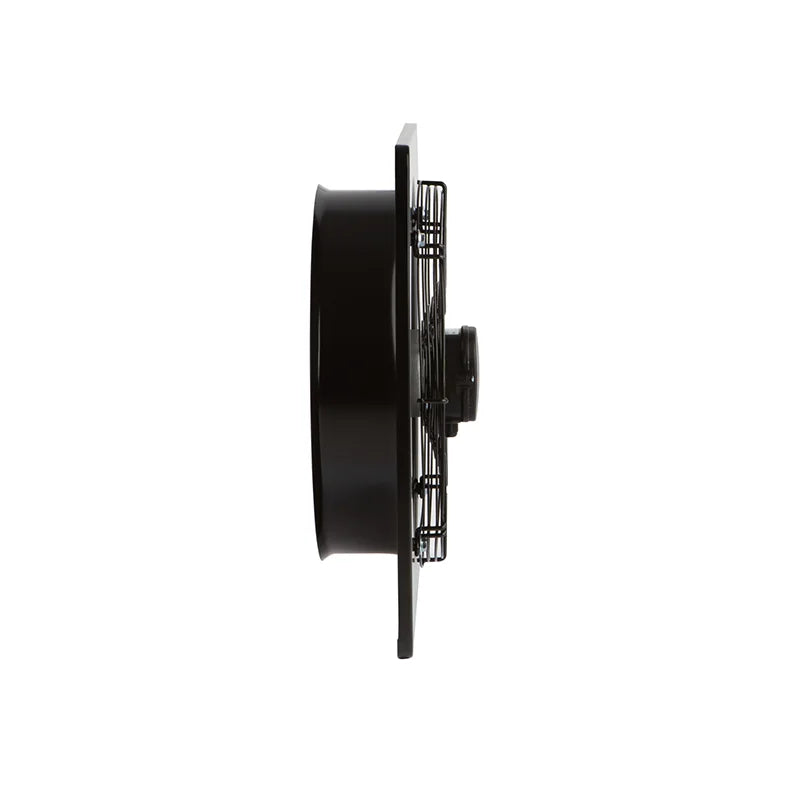

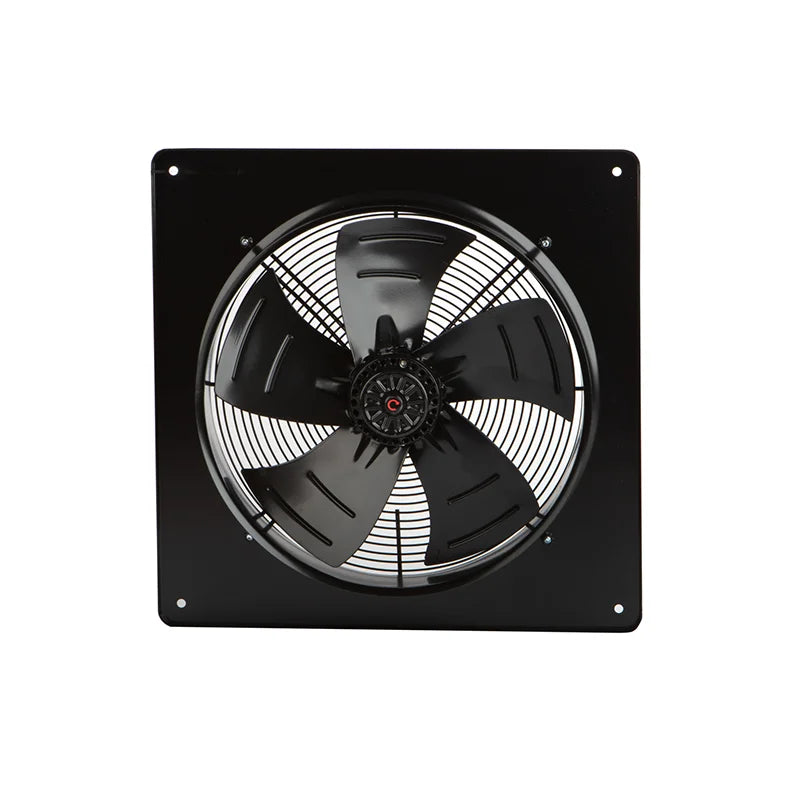

Axial Fan Square Frame FR-300-BS

The FR-BS series axial fans are designed for wall mounting. They feature a square frame with screw holes. The units are made of powder-coated steel with a fine finish. Their blades are profiled to ensure high suction efficiency.

Applications

Fan intended for: warehouses, sports centers, commercial pavilions, garages, greenhouses.

Parameters

Maximum airflow: 780 to 20000 m³/h
Weight: 3.2 to 42.3 kg
Motor rated current: 0.25 to 2.9 A
Housing: powder-coated steel

Additional information

Designed for wall mounting.
Unit available in single-phase or three-phase version.
Metal blades.

Control

The unit is controlled by dedicated automation to control the fan and its operation.

Advantages

  • Equipped with a frame for well-suited wall mounting
  • Powder-coated galvanized protective grille
  • Modern design

Technical Specifications

Airflow

1550 m³/h

Food

230 V / 50 Hz

Intensity

0.40 A

Electrical power

75 W

Engine speed

1400 rpm

Sound level

60 dB(A)

Weight

5.3 kg
